What is a PCB Screw Terminal: Functions,Types and Install Methods

A PCB (Printed Circuit Board) screw terminal is a type of electrical connector that is designed to be mounted directly onto a PCB.

It provides a convenient way to connect wires to the PCB without soldering, allowing for easy installation and removal.

Functions:

Electrical Connection: The primary function of a PCB screw terminal is to establish a secure electrical connection between the PCB and external wires or cables.

Wire Termination: It provides a point for wires to be securely terminated, ensuring reliable electrical contact.

Convenience: Screw terminals offer a convenient means of connecting and disconnecting wires during assembly, maintenance, and repair processes.

Types:

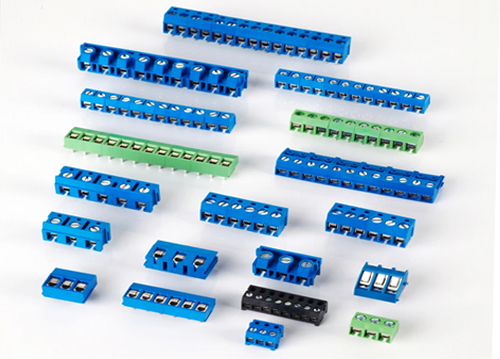

Pitch Size: PCB screw terminals come in various pitch sizes to accommodate different spacing requirements on the PCB.

Number of Poles: They are available in single, dual, or multiple pole configurations to support different wiring needs.

Mounting Style: PCB screw terminals can have different mounting styles, such as through-hole mount or surface mount, to suit specific PCB designs.

Wire Entry: Some terminals have different wire entry options, including top-entry, side-entry, or angled-entry terminals.

Installation Methods:

Through-Hole Mounting: This involves inserting the terminal's leads through corresponding holes in the PCB and then soldering them in place to create a secure mechanical and electrical connection.

Surface Mounting: Surface mount PCB screw terminals are mounted directly onto the surface of the PCB using solder paste and reflow soldering techniques.

Press-Fit Technology: Some PCB screw terminals utilize press-fit technology, where the terminals are pressed into appropriately sized plated-through holes on the PCB without requiring soldering.

When installing PCB screw terminals, it's important to follow the manufacturer's guidelines and ensure proper alignment and secure attachment to the PCB to guarantee reliable and consistent electrical connections.
