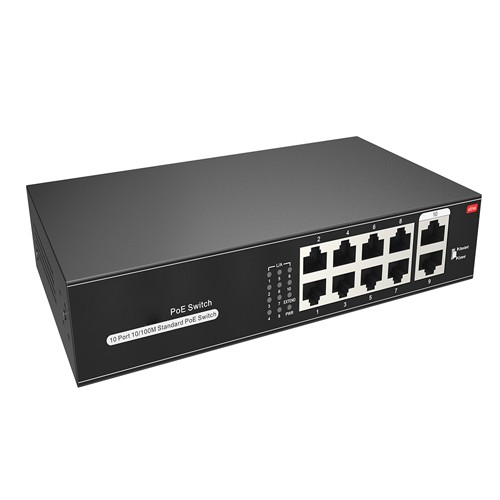

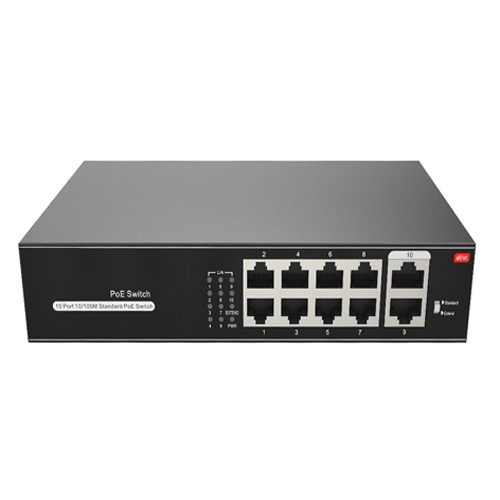

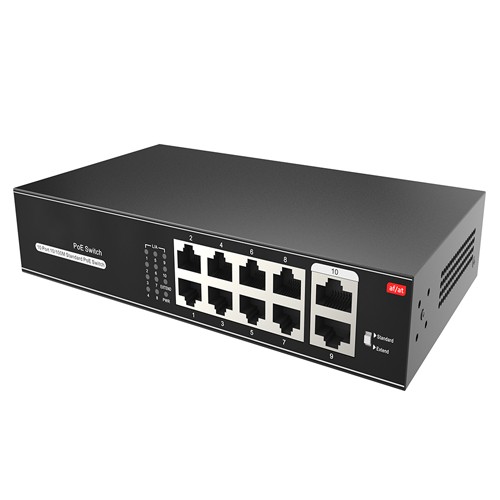

The H1108PLS is a 10/100Mbps unmanaged PoE switch independently developed by Evertop. It has 8*10/100M PoE ports and 2*10/100M uplink RJ45 ports. Port 1-8 can support IEEE802.3af/at PoE standard. Single-port PoE power up to 30W. As a PoE power supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable. It can supply power to POE terminal equipment such as wireless AP, webcam, VoIP phone, video access control intercom, etc. through network cable to meet the network environment that needs high-density PoE power supply. It is suitable for hotels, campuses, factory quarters and small and medium-sized enterprises to form an economy efficient network.
Unmanaged model, plug and play, no configuration, easy to use.
10/100Mbps access, Dual RJ45 port uplink
Support non-blocking wire-speed forwarding for smoother transmission.
Support IEEE802.3x full-duplex flow control and Backpressure half-duplex flow control.
Provides 10*10/100Base-TX RJ45 ports for flexible networking and meets the networking requirements of various scenarios.
Intelligent PoE power supply
IEEE802.3af/at PoE standard, without damaging non-PoE devices.
8*10/100Base-TX RJ45 ports, meeting the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.
Priority system for PoE port, it will supply power to the high priority level port first when the power budget is insufficient and avoid overwork of the device.
Innovative function
EXTEND mode (250m): The speed of ports 1-8 is reduced to 10M when it is turned on, and the existing twisted-pair cable can be used to break through the limit of 100-meter transmission of twisted-pair cable, and the maximum transmission distance can reach 250 meters. On the other hand, It can solve the problem of poor transmission caused by line aging.
VLAN mode: enabled together with the EXTEND mode, port 1-8 are isolated from each other but all communicate with port 9-10, which can prevent DHCP conflicts, optimize port cache utilization, and reduce broadcast storms.
(Note: When the function switch is toggled to 250m mode, the port 1-8 extend transmission and port VLAN isolation function are enabled at the same time.)
Stable and reliable, easy to use
CCC, CE, FCC, RoHS.
Plug and play, no configuration, simple and convenient.
Low power consumption, galvanized steel casing, no fan.
The user-friendly panel can show the device status through the LED indicator of PWR, PoE.
Model | H1064PLS | H1108PLS |
Interface Characteristics | ||
Fixed Port | 4*10/100Base-TX PoE ports (Data/Power) 2*10/100Base-TX uplink RJ45 ports (Data) | 8*10/100Base-TX PoE ports (Data/Power) 2*10/100Base-TX uplink RJ45 ports (Data) |
Ethernet Port | Port 1-6/1-10 can support 10/100Base-TX auto-detection, full/half-duplex MDI/MDI-X auto-sensing | |
Functional Switch | 1*(100m: default 100 meters transmission, 250m: Extend and VLAN transmission mode) | |
Note: when the switch state changes, it must be restarted before the PoE switch function can take effect | ||
Twisted Pair Transmission | 10BASE-TX: Cat5 or later UTP(≤250 meters) 100BASE-TX: Cat5 or later UTP(≤100 meters) | |
Chip Parameter | ||
Network Management Type | Unmanaged | |
Network Protocol | IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX IEEE802.3x | |
Forwarding Mode | Store and Forward(Full Wire Speed) | |
Switching Capacity | 1.6Gbps (Non-blocking) | 2Gbps (Non-blocking) |
Forwarding Rate@64byte | 0.98Mpps | 1.488Mpps |
MAC | 1K | 2K |
Buffer Memory | 768K | 1.25M |
Jumbo Frame | 1536byte | |
LED Indicator | Power:PWR (Green), Network: Link(Yellow), PoE: PoE (Green) Functional switch: EXTEND (Green) | |
PoE & Power Supply | ||
PoE Port | Port 1-4 | Port 1-8 |
Power Supply Pin | 1/2(+) 3/6(-) | |
Max Power Per Port | 30W, IEEE802.3af/at | |
Total PWR / Input Voltage | 65W/ (AC100-240V) | 100W/ (AC100-240V) |
Power Consumption | Standby<3W, Full load<65W | Standby<5W, Full load<100W |
Power Supply | Built-in power supply, AC100~240V 50-60Hz 1.0A | Built-in power supply, AC100~240V 50-60Hz 2.0A |
Physical Parameter | ||
Heat Dissipation | No Fan natural cooling | |
Operation TEMP/ Humidity | -20~+55°C, 5%~90% RH Non condensing | |
Storage TEMP/ Humidity | -40~+75°C, 5%~95% RH Non condensing | |

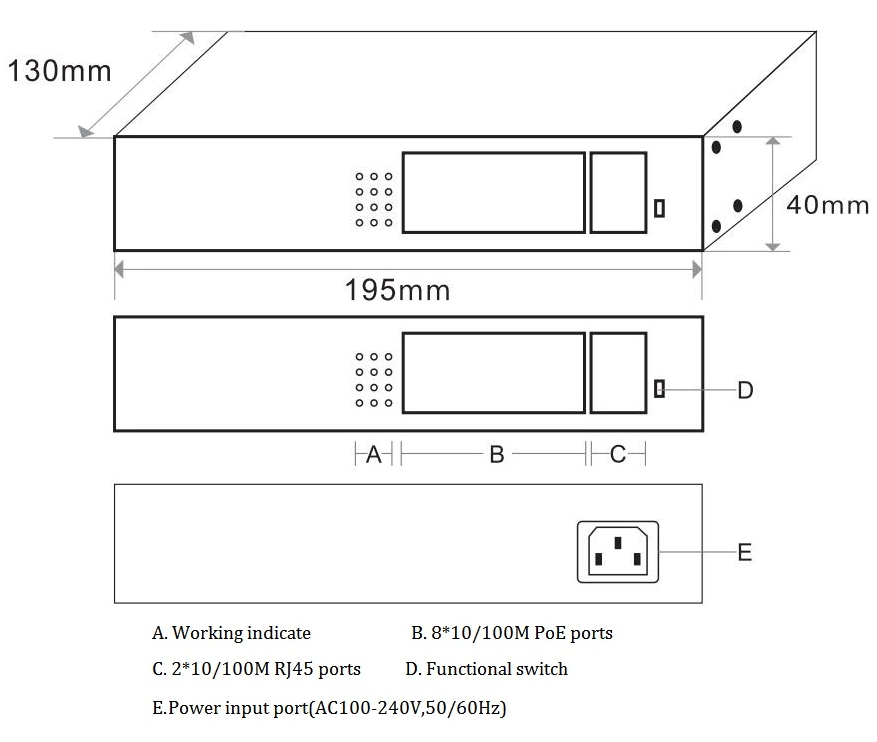

Dimension (L*W*H) | 142*115*40mm | 195*130*40mm |
Net /Gross Weight | <0.6kg / <1.0kg | <0.8kg / <1.2kg |
Installation | Desktop, Wall-mounted | |
Certification & Warranty | ||
Lightning Protection | Lightning protection: 4KV 8/20us, Protection level: IP30 | |
Certification | CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS | |
Warranty | 1 year, lifelong maintenance. |
PACKING LIST | CONTENT | QTY | UNIT |
10-port 10/100Mbps PoE switch | 1 | SET | |
AC Power Cable | 1 | PC | |
User Guide | 1 | PC | |
Warranty Card | 1 | PC |
