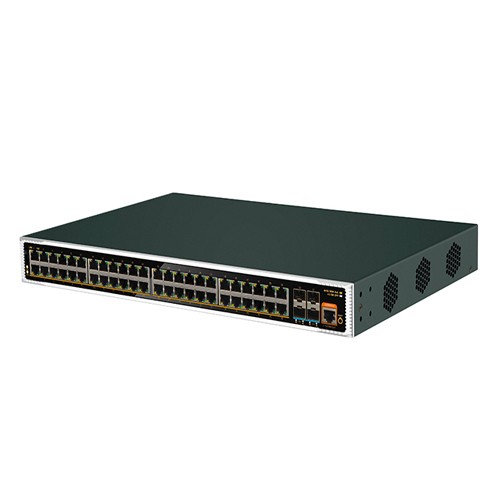

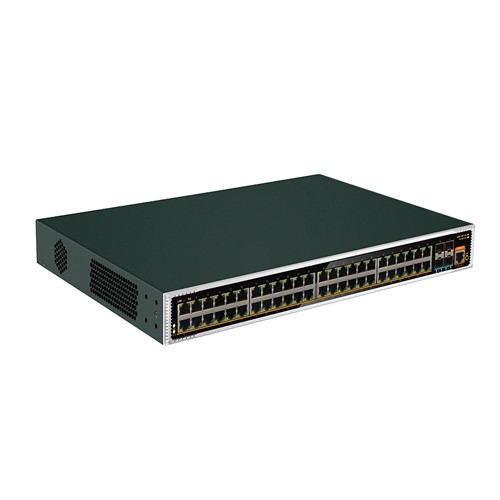

10G uplink 44-port managed industrial Ethernet Fiber switch

OVERVIEW

The ETP-IPS36448FM is a 10G uplink managed industrial Ethernet fiber switch independently developed by Evertop.

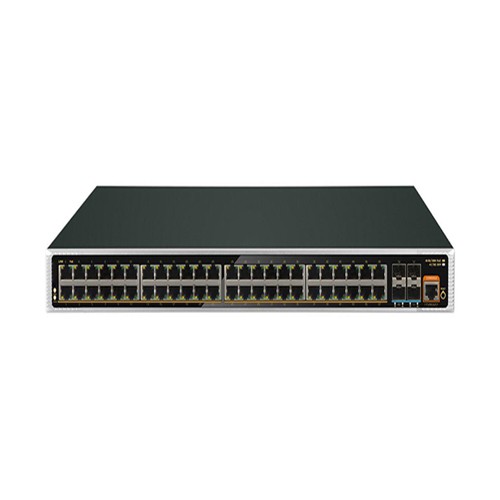

It has 12*10/100/1000Base-T adaptive RJ45 ports and 28*100/1000Base-X SFP fiber ports and 4*1/10G SFP+ fiber slot ports.

Each port can support wire-speed forwarding.

The ETP-IPS36448FM has L2+ network management function, supports IPV4/IPV6 management, supports static route full line

rate forwarding, complete security protection mechanism, perfect ACL/QoS policy, and rich VLAN functions,

easy to manage and maintain.

With industry-leading ring network technology. It supports a variety of industrial-grade redundant ring network protocols,

and each port can form a ring network, supporting chain ring network, starring network, double starring network, ring network,

tangent network ring network, intersecting ring network, coupled ring network, self-healing within 20ms of the ring network.

The switches series has high reliability, high security, and high manageability, ensures reliable transmission of key data,

supports remote management, and cooperates with the ETP-NMS network management platform for cluster management

to achieve no blind spot network management throughout the process.

The product completely follows the industrial product design and materials. The shell is made of metal material to enhance heat dissipation.

It has excellent adaptability to the industrial site environment (including mechanical stability, climate environment adaptability,

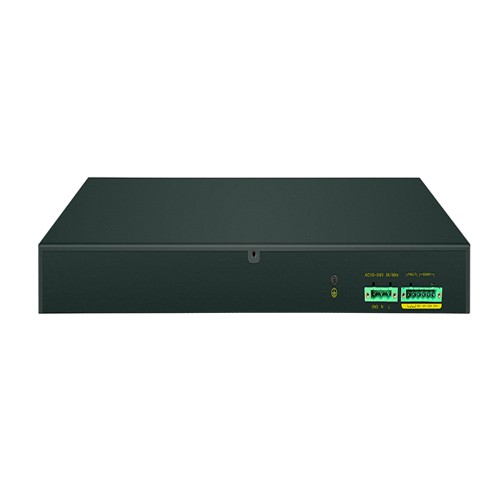

electromagnetic environment adaptability, etc.). Protection level reaches IP40 and supports 2AC+DC dual redundant power supply,

and the MTBF can up to 35 years, 5 years warranty. It is suitable for intelligent transportation, rail transit, power industry, mining,

petroleum, and industrial scenes such as shipping, metallurgy, and green energy construction form a cost-effective, stable,

and reliable communication network.

FEATURE

Gigabit multi fiber port access, 10G uplink

◇ Support non-blocking wire-speed forwarding.

◇ Support full-duplex based on IEEE802.3x and half-duplex based on Backpressure.

◇ Supports Gigabit Ethernet port and Gigabit SFP port and 10G uplink SFP+ port to meet the networking requirements of various scenarios.

Security

◇ 802.1X authentication.

◇ Port isolation,Storm control.

◇ IP-MAC-VLAN-Port binding.

Strong business processing capability

◇ ERPS/STP/RSTP/MSTP.

◇ Static and dynamic aggregation.

◇ IGMP V1/V2 and IGMP Snooping.

◇ IEEE802.1Q VLAN, flexible VLAN division,Voice VLAN and QinQ configuration.

◇ QoS, Priority mode based on 802.1P, Port & DSCP, queue scheduling algorithm including Equ, SP, WRR & SP+WRR.

◇ ALC, filter data packet through configuring matching rules, processing operation & time permission, and provide flexible and safe access control.

Stable and reliable

◇ CCC,CE, FCC, RoHS.

◇ The user-friendly panel can show the device status through the LED indicator of PWR, Link.

◇ Self-developed power supply, high redundancy design, providing a long term and stable power output.

◇ Low power consumption.No fan. Galvanized steel metal shell and aluminum alloy cooling plate combination.

Easy operation and maintenance management

◇ HTTPS, SSLV3, and SSHV1/V2.

◇ RMON, system log, LLDP, and port traffic statistics.

◇ CPU monitoring, memory monitoring, Ping test, and cable diagnose.

◇ Web management, CLI command line (Console, Telnet), SNMP (V1/V2/V3).

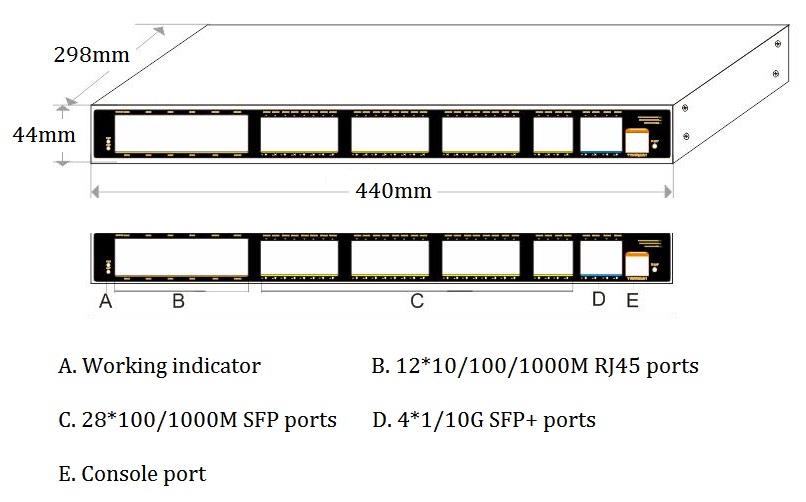

DIMENSION

ORDERING INFORMATION

PACKING LIST
